Flexotherm™ - Industrial Heated Products - Filter Housings

filter housings

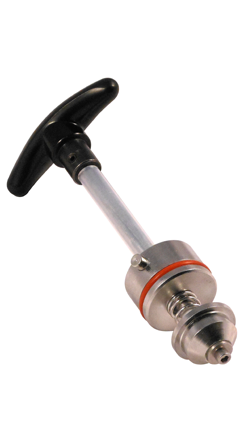

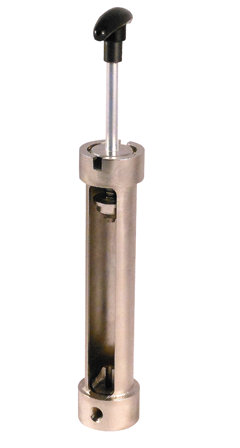

In addition to our heated filter housings, Flexotherm™ also manufactures electro-polished 316 stainless steel filter housings for use in emissions testing and chemical analysis. Filter housings from Flexotherm™ are designed to be versatile for implementation within a heated filtration set-up as well as to function as stand-alone filter housings. Due to the design's low internal volume sample response time is improved. Optional features are extended handle shafts, panel mounting collars, and Dursan SilcoNert® Coating for improved resistance to hang-up from ammonia contaminants. This device is intended for vacuum use only. Maximum 10 PSI (.69 Bar) limit at any time.
Features
  • Two-Year Limited Warranty
  • Electro-polished 316 Stainless Steel
  • Low Internal Volume
  • Spring Loaded Element
  • Positive Handle STOP/DETENT
  • High-Temp Silicone O-Rings
  • Dupont™ Krytox® Performance Lubricant
  • Duroplast® Tee Handle with Steel Shaft Insert
  • Teflon® Insulated Handle Shaft
  • 1/4" Female NPT Inlet / Outlet Ports
  • (2) Threaded 1/2-20 Mounting Holes
  • Extended Handle Shafts - Optional
  • Dursan SilcoNert® Coating - Optional
  • Panel Mounting Collar - Optional
